EX324/AD (auto-door)
PIC

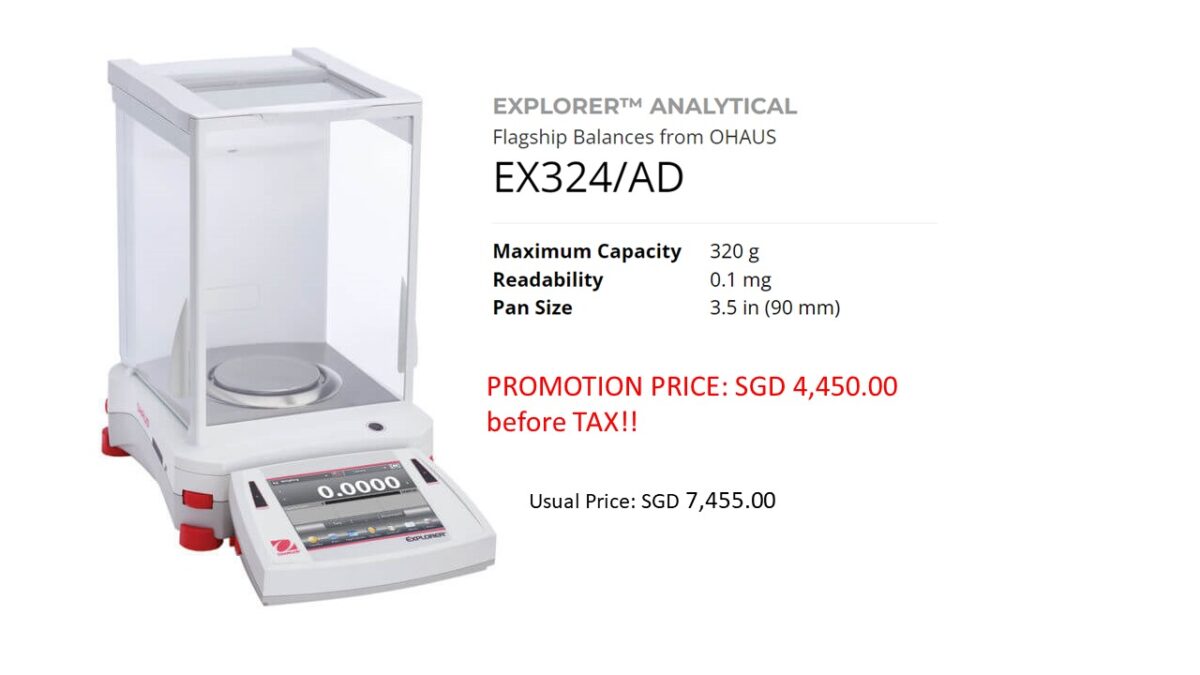

EX324/AD (auto-door)

EXPLORER™ ANALYTICAL Flagship Balances from OHAUS

Maximum Capacity 320 g
Readability 0.1 mg
Pan Size 3.5 in (90 mm)



ORDER

Category
Share

SPECIFICATIONS

Maximum Capacity 320 g
Readability 0.1 mg
Pan Size 90 mm
Internal Calibration AutoCal™ – Automatic
Draft-shield Included
Auto Door Included
Communication USB (Included);  RS232 (Included)
Dimensions 393 mm x 350 mm x 230 mm (LxHxW)
Display Full-color 5.7 in VGA, touch screen
In-Use Cover Included
Linearity ± 0.0002 g
Minimum Weight (USP, 0.1%, typical) 0.16 g
Net Weight 6.9 kg
Pan Construction Stainless Steel
Power AC Adapter (Included)
Repeatability, typical 0.0001 g
Stabilization Time 3 s
Tare Range To capacity by subtraction
Units of Measurement Singapore Tael;  Ounce Troy;  Pennyweight;  Grain;  Kilogram;  Tical;  Custom;  Milligram;  Momme;  Newton;  Baht;  Taiwan Tael;  Gram;  Hong Kong Tael;  Pound;  Tola;  Mesghal;  Carat;  Ounce
Working Environment 10°C – 30°C, 85%RH, non-condensing

DESCRIPTIONS

The OHAUS EX324/AD analytical balance combines modern features and design elements to offer unmatched functionality in a line of high-performance balances unlike any other on the market. This smart and intuitive balances and all of its intelligent features simplify even the most complex laboratory measurements.
Applications
Weighing, Parts Counting, Percent Weighing, Checkweighing, Animal/Dynamic Weighing, Filling, Totalization/Statistics, Formulation, Differential Weighing, Density Determination, Peak Hold, Ingredient Costing, Pipette Adjustment, SQC.
Display
5.7″ (145 mm) Full-color VGA graphic touchscreen display with user-controlled brightness.
Operation
AC adapter (included).
Communication
RS232 and USB (included). GLP/GMP data output with real-time clock.
Construction
Metal base, ABS top housing, stainless steel pan, glass draft-shield with top mounted side doors & flip/sliding top door, illuminated up-front level indicator, weigh below hook, security bracket, calibration lock, 4 touchless sensors, in-use cover.
Design Features
Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, auto standby, up to 14 operating languages.
