- High-speed, high reliability thermal head printer.
- Easy paper handing achieved special designed mechanism.
- Built-in clock automatically updates date and time.
- Quick response to weight changes.

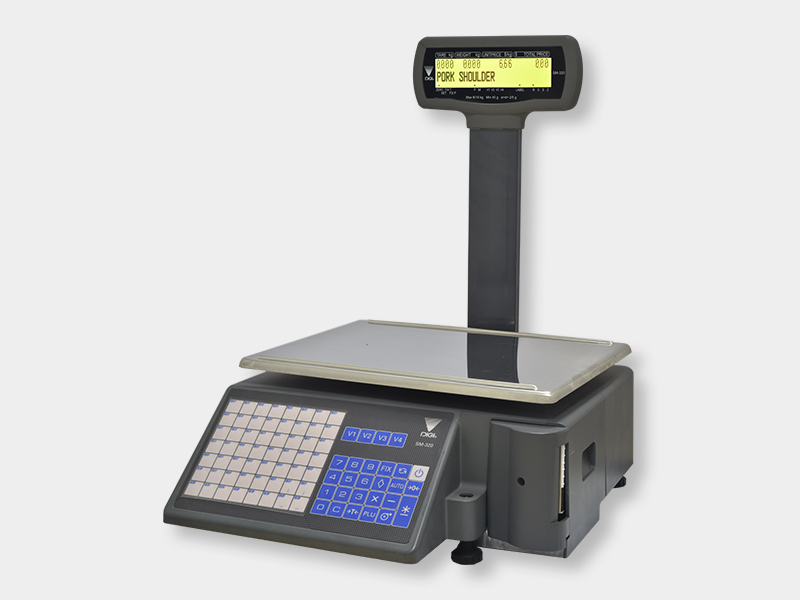

SM-320
Economical and straightforward price computing label printing scale.
Model / Capacity
| Model: | Capacity: | Readability: | Type: |
|---|---|---|---|
| SM-320B /15K | 6/15 kg | 2/5 g | Bench |
| SM-320B /30K | 15/30 kg | 5/10 g | Bench |
| SM-320P /15K | 6/15 kg | 2/5 g | Pole |
| SM-320P /30K | 15/30 kg | 5/10 g | Pole |
Technical Specification
Operating Conditions
- Power Source : AC 176V ~ 264V, 47~63Hz.
- Operating Temperature : -10 C ~ +40 C.
- Operating Humidity : 15% ~ 85% RH.
- Power Consumption : 0.15A.
Dimensions
- Platter size : 386(W) x 270(D) mm.
- Overall size
a) Bench 386(W) x 406(D) x 159(H) mm.
b) Pole 386(W) x 484(D) x 452(H) mm.
Printing Device
- Max. Printing Width : 56mm.
- Paper Width : 58mm (receipt) / 56mm (label).
