- Largest Display in its Class
- The Most User Friendly Scale on the Market
- Rapid Stabilization
- Standard RS232 for Easy Data Transfer
- Portability and Versatile Power Options

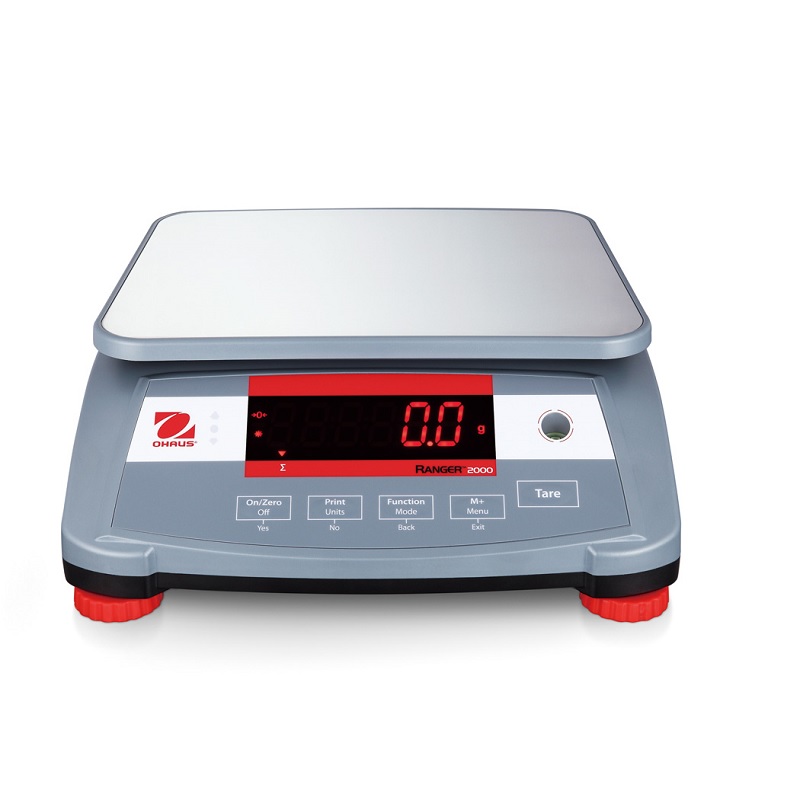

R21
Effective Compact Bench Scales for Industrial Weighing Applications
Model, Capacity & Readability
| Model: | Capacity: | Readability: |
|---|---|---|
| R21PE1502 | 1500 g | 0.05 g |
| R21PE3 | 3000 g | 0.1 g |
| R21PE6 | 6000 g | 0.2 g |
| R21PE15 | 15000 g | 0.5 g |
| R21PE30 | 30000 g | 1 g |
Technical Specification
Construction- Plastic pan with Stainless Steel Cover, plastic housing
Weighing units- kg, g, lb, oz, lb:oz
Application Modes- Weighing, Parts Counting, Checkweighing, Checkcounting, Checkpercent, Percent Weighing, Dynamic/Display Hold, Accumulation
Display- 40mm high Red LED display, 6-digit, 7-segment
Keypad- 5 mechanical keys
Zero Range- 4% or 20% of full-scale capacity
Tare Range- Full capacity by subtraction
Stabilization time- 1 second
Power- 220-240 VAC / 50-60 Hz internal transformer, internal rechargeable lead acid battery
Battery Life- 110 hours continuous use with 12 hour recharge time
Operating Temperature Range- -10 degree Celsius to 40 degree Celsius
Pan Size- 300 x 225mm
Scale Dimensions (W x L x H) – 311 x 327 x 117mm
